SH Power provides full-lifecycle support for its transformers, encompassing solution design, model optimization, and on-site commissioning—all delivered by our highly experienced technical team. We offer tailored solutions for a wide range of applications to ensure efficient operation and maximize energy savings.

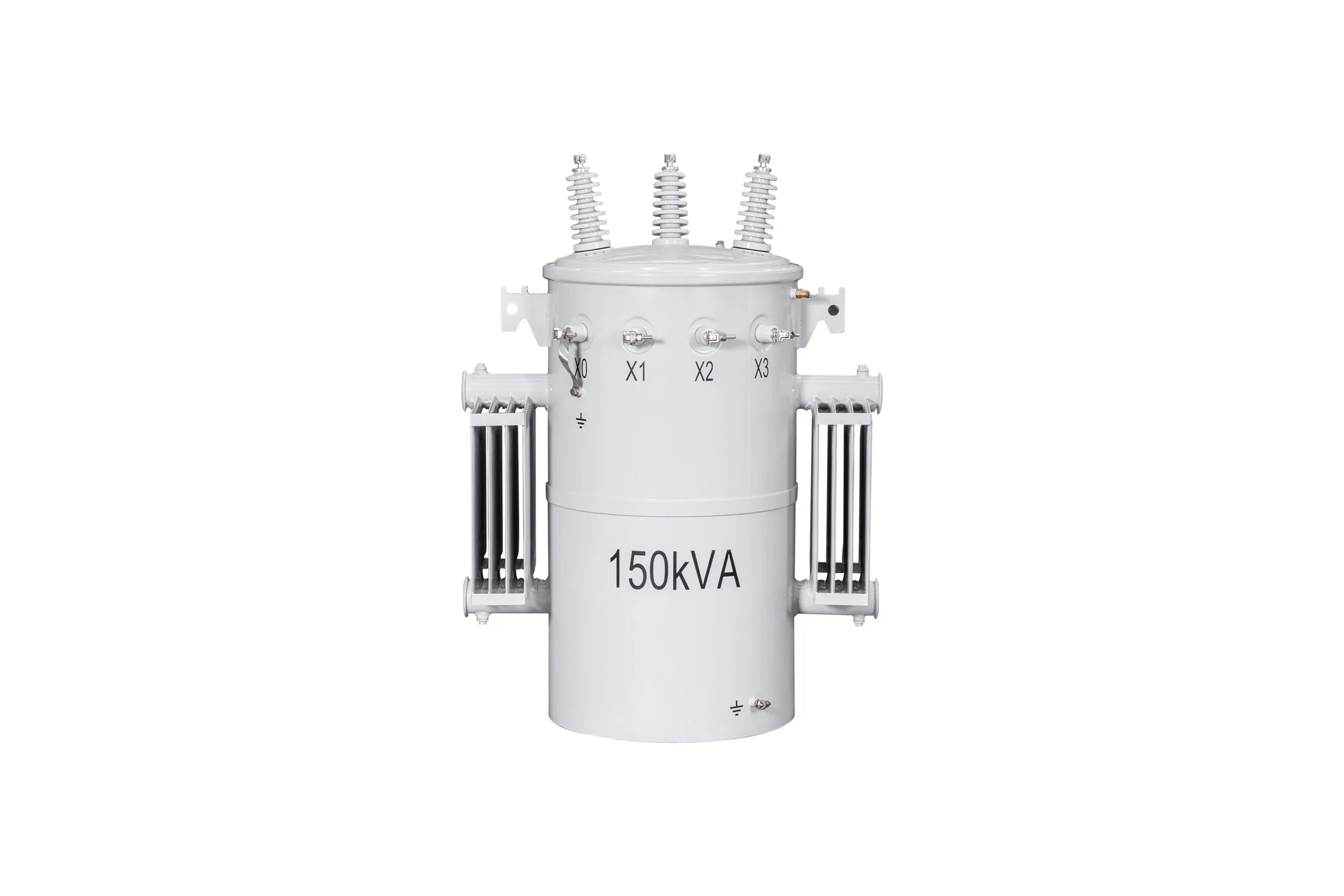

Single-phase overhead transformers with a rated capacity of 5–250 kVA and a frequency of 60 Hz are designed for pole-mounted overhead installation. Characterized by a small low-voltage (LV) power supply radius and low LV line losses, they are widely evaluated and deployed in urban and rural power grids. The products have been rigorously tested in strict accordance with the latest applicable standards, such as ANSI, NEMA, and ANSI C57.12.20. Our company can provide valid test reports.
Technical Specifications
| Transformer Type | Single-phase overhead transformer |
| Transformer Capacity (kVA): | 5-250 |
| Primary Voltage (V): | 2400~19920 |
| Secondary Voltage (V): | 120~600 |
| Frequency (Hz): | 50~60 |
| Winding Material: | Aluminum |
| Anti-corrosion Class: | C5+ |
Product Features
Lifting lugs / Support brackets;
Arrester mounting pads;
Cover-mounted high-voltage (HV) porcelain bushings with eyebolt terminals (10–100 kVA) or spade terminals;
Low-voltage (LV) insulators available in fiberglass-reinforced polyester (FRP) or porcelain (with eyebolt and spade terminals);
LV neutral grounding busbar (for 10–50 kVA single HV bushing units);
Hanger brackets;
Polyester coating (exceeding 13 mils) applied to provide 15 kV dielectric insulation for grounded and live parts of the consumer box, thereby enhancing corrosion resistance;
Self-disassembling and self-sealing cover assembly;
Core/coil bolted spacer position: 180°;
LV leads with embossed patterns;
Grounding strap with oil plug (with cover);
Tank grounding pads.
Complete Product Range Our comprehensive portfolio includes oil-immersed, dry-type, and prefabricated substation adapters, satisfying the requirements of all voltage levels and application scenarios.
High Efficiency & Low Losses Manufactured with top-grade prime silicon steel and premium insulation systems, our products feature exceptionally low no-load and load losses, delivering significant energy savings.
Reliable Sealing & Insulation The oil-immersed sealed units offer outstanding moisture resistance, leak prevention, and dielectric properties, guaranteeing long-term stability and performance.
Precision Manufacturing The entire production process strictly adheres to national standards and the ISO 9001 Quality Management System.
Custom Design Capabilities We offer tailor-made designs optimized for specific on-site conditions and load characteristics.
Durability & Safety The robust structural design comes equipped with integrated overload and high-temperature protection features.
Eco-Friendly Compliant with environmental regulations such as RoHS—featuring low noise levels and minimal environmental impact.
Utility-Scale Generation & Transmission Our 110kV and 220kV power transformers are widely and efficiently deployed in transmission substations to achieve optimal and seamless voltage conversion.
Renewable Energy Grid Integration We provide specialized solutions for renewable energy projects, such as solar and wind farms, including photovoltaic (PV) step-up transformers and fully integrated step-up solutions.
Industrial & Commercial Distribution Ideally suited for industrial facilities, commercial complexes, data centers, and high-rise buildings, our dry-type and pad-mounted transformers deliver safe, secure, and reliable power distribution.
Public & Residential Infrastructure Our distribution transformers—including pole-mounted and ground-mounted (pad-mounted) units—are essential for urban and rural power grids, delivering stable electricity to homes and public facilities.
