Background

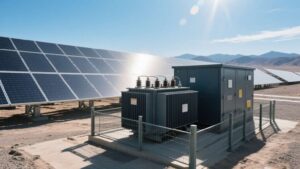

Located at the edge of Kubuqi Desert, this 100MW solar plant faced triple extreme conditions: sandstorms (dust deposition >200g/m²), 70℃ diurnal temperature swing (-35℃~+45℃), and grid harmonics (THDu >8%). SH Power’s 35kV/1600kVA box-type transformers required 20-year reliability under desert corrosion, thermal derating, and harmonic interference while meeting State Grid’s voltage deviation standard (±10%).
Core Solutions
Product Category | Model/Specs | Technology Highlights | Retrofit Value |
Box-Type Transfomer | ZGS13-1600/35 | ・Desert Protection: IP65 sealing + nano self-cleaning coating (>5,000h sand test) ・Wide-Temp Operation: -40℃ silicone rubber insulation (Doc P5) ・Efficient Cooling: Smart forced-air + heat pipes (ΔT≤55K) | Extreme environment adaptation |
Harmonic Suppressor | HPD-35C | ・Active Filtering: Class C filter (THDu≤3%) ・Anti-Resonance: Adaptive frequency scanning (avoids 2nd~13th harmonics) | Grid compliance |
