Trunnion Clamp

Applicable to :Trunnion Clamp

Description

Product Features:

Designed for use on tangent suspension spans with horizontal or vertical post insulators
Material:
- Body and Keeper-Aluminum alloy or Ductile iron,galvanized
- Bolt-Galvanized steel
- Spring-Stainless steel
For single conical spring, add “-S”to Catalog
For double conical springs, add “-2S”to Catalog No.

Technical Parameters:

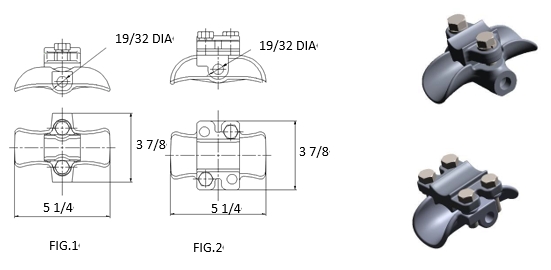

Catalog No.	Fig.No.	Clamping Range (inches)	Approx. Weight Per 100(Lbs.)	Body and keeper Material
SATC057	1	.25-.57	81	Aluminum
SATC084	1	.35-.84	95	Aluminum
SATC106	1	.50-1.06	98	Aluminum
SATC150	1	1.00-1.50	110	Aluminum
SATC200	2	1.50-2.00	172	Aluminum
SSTC057	1	.23-.57	250	Ductile Iron
SSTC086	1	.35-.86	260	Ductile Iron
SSTC118	1	.50-.1.18	273	Ductile Iron
SSTC150	1	.93-1.50	295	Ductile Iron
SSTC200	2	1.50-2.00	310
