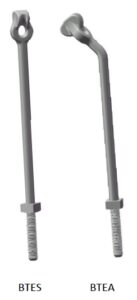

Applicable to : Straight Type Thimble Eye Bolts , 45° Angle Type Thimble Eye Bolts

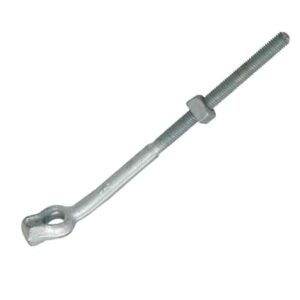

Thimble Eye Bolts are used for dead-ending messengers and guys. The drop-forged eyes have a generous radius to prevent injury to the strand and eliminate the need for a thimble.
| Catalog No. | Thread Size (inches) | Bolt Length L( inches) | Thread Length T( inches) | Minimum Tensile Strength(Lbs.) | Approx. Weight Per 100(Lbs.) |
| BTES5810 | 5/8 | 10 | 4 | 13,550 | 140 |
| BTES5812 | 5/8 | 12 | 6 | 13,550 | 152 |
| BTES5814 | 5/8 | 14 | 6 | 13,550 | 164 |
| BTES5816 | 5/8 | 16 | 6 | 13,550 | 172 |
| BTES5818 | 5/8 | 18 | 6 | 13,550 | 192 |
| BTES3412 | 3/4 | 12 | 6 | 20,050 | 212 |
| BTES3414 | 3/4 | 14 | 6 | 20,050 | 232 |
| BTEA5810 | 5/8 | 10 | 4 | 13,550 | 148 |
| BTEA5812 | 5/8 | 12 | 6 | 13,550 | 152 |
| BTEA5814 | 5/8 | 14 | 6 | 13,550 | 176 |
| BTEA5816 | 5/8 | 16 | 6 | 13,550 | 184 |
| BTEA3410 | 3/4 | 10 | 4 | 20,050 | 200 |
| BTEA3412 | 3/4 | 12 | 6 | 20,050 | 220 |
| BTEA3414 | 3/4 | 14 | 6 | 20,050 | 236 |
