Applicable to :Ball‐Y Clevis
Product Features:
Technical Parameters:

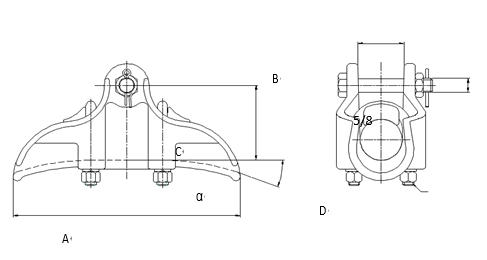

| Catalog No. | Clamping Range (inches) | Dim A(inches) | Dim B(inches) | Dim C(inches) | Dim D(inches) | Ultimate Strength(Lbs.) | Body and keeper Material |
| SC08518 | .40-.85 | 7.5 | 0.98 | 2.56 | 1/2 | 18,000 | aluminum |
| SC10425 | .50-1.04 | 8.12 | 1.15 | 2 3/4 | 1/2 | 25,000 | aluminum |
| SC11825 | .70-1.18 | 8 | 1.26 | 2.75 | 1/2 | 25,000 | aluminum |
| SC13925 | .90-1.39 | 8.88 | 1.5 | 3 | 1/2 | 25,000 | aluminum |
| SC16225 | 1.10-1.62 | 9.5 | 1.69 | 3.08 | 1/2 | 25,000 | aluminum |
| SC18225 | 1.25-1.82 | 10 | 1.92 | 3.37 | 1/2 | 25,000 | aluminum |
| SC20425 | 1.40-2.04 | 10.5 | 2.09 | 3.53 | 1/2 | 25,000 | aluminum |
| SCS04616 | .18-.46 | 5.73 | 0.66 | 2 | 1/2 | 16,000 | ductile iron |
| SCS06016 | .20-.60 | 6.5 | 0.91 | 2 | 1/2 | 16,000 | ductile iron |
| SCS07018 | .20-.70 | 6.5 | 0.91 | 2 | 1/2 | 16,000 | ductile iron |
| SCS10425 | .5-1.04 | 8.15 | 1.17 | 2.75 | 1/2 | 25,000 | ductile iron |
| SCS11025 | .5-1.10 | 8.15 | 1.17 | 2.75 | 1/2 | 25,000 | ductile iron |
