Socket-Y-Clevis

Socket Y‐Clevis

Applicable to : Socket Y‐Clevis

Description

Product Features:

Socket Y clevises are used to connect to ball and socket insulators
Material:
- Body-Forged steel
- Bolt-High grade steel
- Cotter key-Stainless steel
- Security key-Stainless steel
All ferrous parts are hot dip galvanized
For low temperature products, add -C1.5 to the Catalog

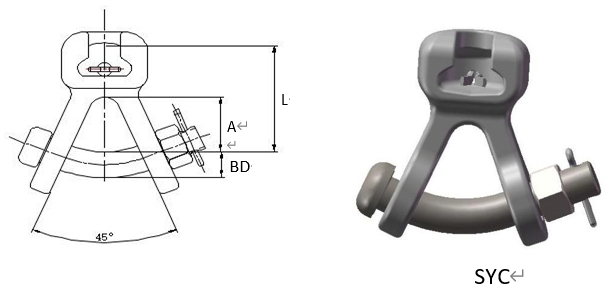

Technical Parameters:

Catalog No.	Ball ANSI Class	Dim L(inches)	Dim A(inches)	Dim BD(inches)	Ultimate Strength (Lbs.)	Approx. Weight Per 100(Lbs.)
SYC30	52-3 52-5	2.84	1.69	7/8	30,000	506
SYC50	52-8 52-11	2.85	1.69	7/8	50,000	518
