SH Power provides fully customized solutions to meet the specific requirements of diverse power grid projects. Our expert engineering team offers technical guidance throughout the entire process—from product selection and structural design to installation and commissioning—ensuring that every fitting integrates seamlessly into your electrical system.
Product Features:
Technical Parameters:

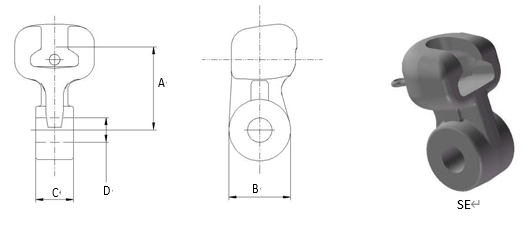

| Catalog No. | Ball ANSI Class | Dim A(inches) | Dim B(inches) | Dim C(inches) | Dim D(inches) | Ultimate Strength (Lbs.) | Approx. Weight Per 100(Lbs.) |
| SE30 | 52-3 | 2.19 | 1.69 | 0.87 | 0.81 | 30,000 | 147 |
| SE30A | 52-3 52-5 | 3.28 | 1.74 | 1.06 | 0.69 | 30,000 | 161 |
| SE30B | 52-3 | 2.06 | 0.81 | 0.63 | 0.81 | 30,000 | 134 |
| SE30C | 52-3 52-5 | 2.76 | 0.79 | 1.26 | 0.79 | 30,000 | 150 |
| SE30L | 52-3 | 6.17 | 2.00 | 0.69 | 0.69 | 30,000 | 231 |
| SE50A | 52-8 52-11 | 3.35 | 2.17 | 0.75 | 0.87 | 50,000 | 342 |
| SE50B | 52-8 | 3.37 | 1.75 | 2.19 | 0.81 | 50,000 | 317 |
Covering grid-line fittings, substation fittings and distribution-network fittings to meet the full chain of transmission, transformation and distribution.
Made of hot-dip-galvanized steel, aluminium alloy and other premium materials for superior mechanical strength and corrosion resistance.
Critical parts produced on CNC machines and high-precision dies to guarantee tight tolerances and reliable assembly.
Compatible with a variety of conductors, earth wires and insulator configurations for different voltage levels and system layouts.
Rational design enables fast installation, cutting labour costs and maintenance downtime.
Validated through comprehensive mechanical, electrical, and environmental tests, ensuring stable long-term performance.
Full range complies with national and IEC standards, ensuring safe grid operation.
Suitable for connection and fixation on all types of high-voltage (HV), extra-high-voltage (EHV), and ultra-high-voltage (UHV) transmission lines.
Provide secure connection and support for busbars, equipment and conductors.
Used for end support and connection in urban and rural distribution networks.
Widely applied in grid-connection works for wind, PV and energy-storage projects.
Guarantee stable power supply to factories, mines, traffic hubs and other critical loads.
