Single-phase overhead transformer

SH Power offers full life-cycle support for its transformers,covering solution design, model optimization, and on-site commissioning—all handled by our experienced technical team. We provide tailor-made solutions for various applications to ensure efficient operation and maximize energy savings.

Description

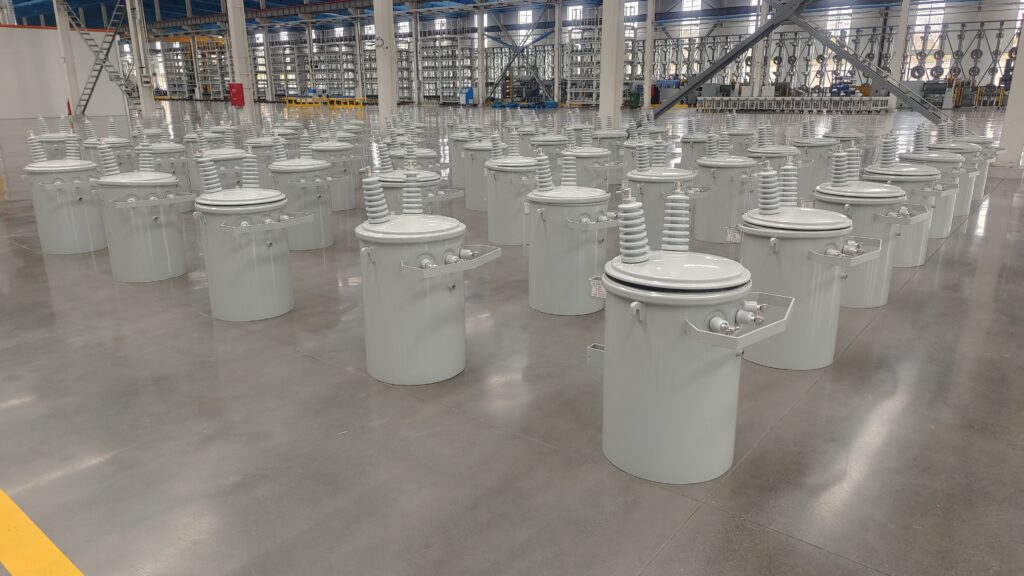

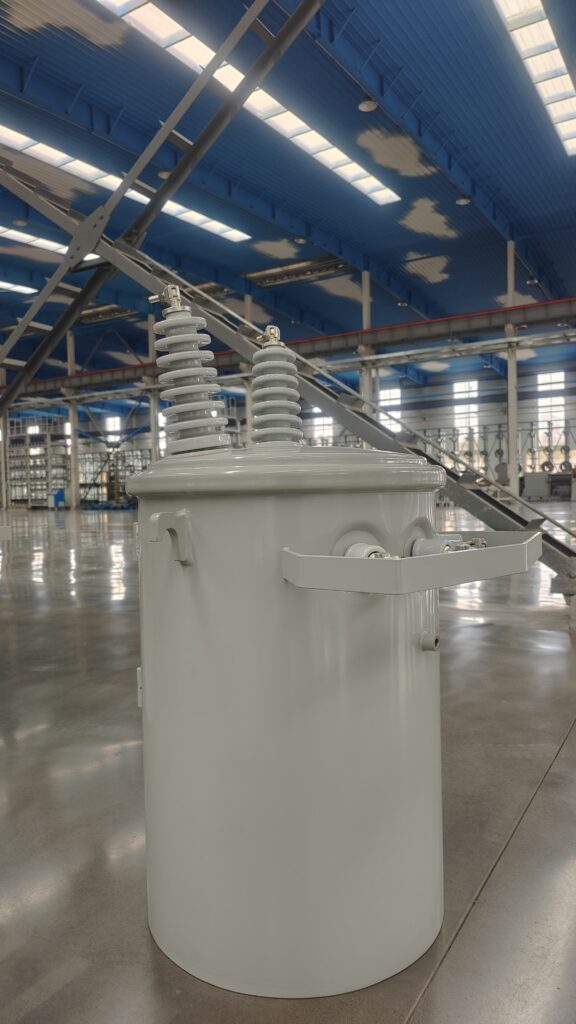

A single- phase overhead transformer with a rated capacity of 5~250kVA and a frequency of 60Hz, used in column overhead installation, has a small radius of low-voltage power supply, and low-voltage line loss is low. It is widely used in rural and urban power grids.The products have been tested in strict accordance with the latest versions of applicable standards such as ANSI, NEMA, and ANSI C57.12.20. Our company will provide valid test reports.

Technical
Transformer Types:	Single-phase overhead transformer
Transformer Capacity(kVA):	5-250
Primary Voltage(V):	2400~19920
Secondary Voltage(V):	120~600
Frequency (Hz):	50~60
Winding Material:	Aluminum
Anti-corrosion Grade:	C5+

Product functions

Lug bracket;
Lightning arrester pad;

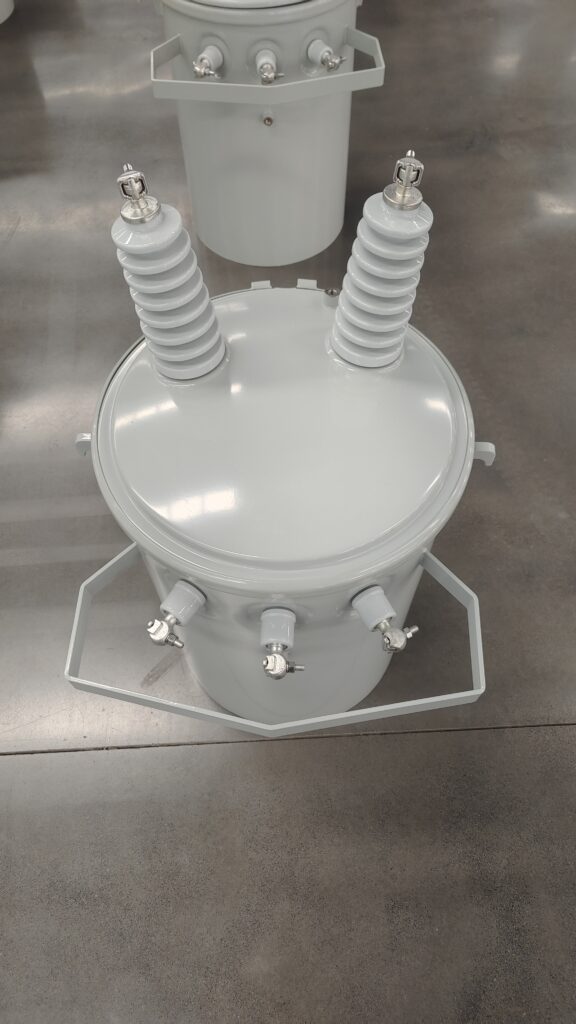

Cover-mounted high-voltage porcelain bushing, with eyebolt terminal (10-100kVA) or shovelshaped terminal;
Low-voltage insulators can be made of glass fiber-reinforced polyester material or ceramic (lifting ring bolt and blade terminals);
Low-voltage neutral grounding busbar (on 10~50kVA single high-voltage bushing unit);
Suspension bracket;
Cover with polyester coating (more than 13 mils), for 15kV dielectric insulation of grounding and live parts of the fuel tank, leading to higher corrosion resistance;
Self-exhaust and resealing cover assembly;
Spacing of core/coil bolt pads: 180° ;
Low-voltage lead with embossed pattern;
Oil plug (with cover) for earth strip;
Tank grounding pad.

Key Features

Comprehensive Product Range

Including oil-immersed, dry-type and packaged substation transformers to cover all voltage levels and application needs.

High Efficiency & Low Loss

Built with high-grade grain-oriented silicon steel and premium insulation systems for low no-load and load losses and outstanding energy savings.

Reliable Sealing & Insulation

Oil-immersed and packaged units offer superior moisture-proof, leak-proof and dielectric performance, guaranteeing long-term stability.

Precision Manufacturing

The entire process strictly follows national standards and ISO 9001 quality management system.

Custom Design Capability

Custom designs are available to match specific site conditions and load characteristics.

Durability & Safety

Robust construction incorporates overload and high-temperature protection functions.

Environment-Friendly

Compliant with RoHS and other environmental regulations—low noise, minimal losses.

Applications and Utility

Utility-Scale Power Generation and Transmission

Our 110kV and 220kV power transformers are widely used in power plants and transmission substations for efficient voltage transformation.

Renewable Energy Integration

We provide specialized solutions, including inverter and step-up integrated transformers, for renewable energy projects like solar farms and wind power plants.

Industrial and Commercial Distribution

Our dry-type and pad-mounted transformers are perfect for industrial facilities, commercial complexes, data centers, and high-rise buildings, providing safe and reliable power distribution.

Public and Residential Infrastructure

Our distribution transformers, including pole-mounted and pad-mounted types, are essential for urban and rural power grids, delivering electricity to homes and public facilities.
