Applicable to : 3/4” 7/8” Shoulder Eye Bolts

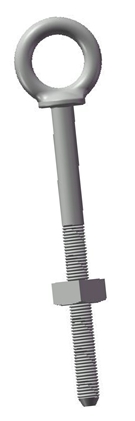

Shoulder Eye Bolts are widely used in transmission and distribution line work. The larger shoulder eliminates the use of a washer under the eye. One hex nut is supplied with each bolt. The 3/4″ (19 mm) sizes are available in a low and high strength, heat treated version.
| Catalog No. | Thread Size (inches) | Bolt Length L( inches) | Thread Length T( inches) | Minimum Tensile Strength(Lbs.) | Approx. Weight Per 100(Lbs.) |
| BSE3406 | 3/4 | 6 | 4 | 30,000 | 190 |
| BSE3408 | 3/4 | 8 | 4 | 30,000 | 214 |
| BSE3410 | 3/4 | 10 | 6 | 30,000 | 238 |
| BSE3412 | 3/4 | 12 | 6 | 30,000 | 262 |
| BSE3414 | 3/4 | 14 | 6 | 30,000 | 286 |
| BSE3416 | 3/4 | 16 | 6 | 30,000 | 310 |
| BSE3418 | 3/4 | 18 | 6 | 30,000 | 334 |
| BSE3420 | 3/4 | 20 | 6 | 30,000 | 358 |
| BSE3422 | 3/4 | 22 | 6 | 30,000 | 382 |
| BSE3424 | 3/4 | 24 | 6 | 30,000 | 406 |
| BSE3426 | 3/4 | 26 | 6 | 30,000 | 430 |
| BSE3428 | 3/4 | 28 | 6 | 30,000 | 454 |
| BSE3430 | 3/4 | 30 | 6 | 30,000 | 478 |
| BSE7806 | 7/8 | 6 | 4 | 35,000 | 248 |
| BSE7808 | 7/8 | 8 | 4 | 35,000 | 282 |
| BSE7810 | 7/8 | 10 | 6 | 35,000 | 316 |
| BSE7812 | 7/8 | 12 | 6 | 35,000 | 350 |
| BSE7814 | 7/8 | 14 | 6 | 35,000 | 384 |
| BSE7816 | 7/8 | 16 | 6 | 35,000 | 418 |
| BSE7818 | 7/8 | 18 | 6 | 35,000 | 452 |
| BSE7820 | 7/8 | 20 | 6 | 35,000 | 486 |
| BSE7822 | 7/8 | 22 | 6 | 35,000 | 520 |
| BSE7824 | 7/8 | 24 | 6 | 35,000 | 554 |
| BSE7826 | 7/8 | 26 | 6 | 35,000 | 588 |
| BSE7828 | 7/8 | 28 | 6 | 35,000 | 622 |
| BSE7830 | 7/8 | 30 | 6 | 35,000 | 656 |
