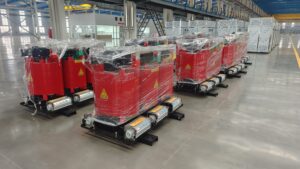

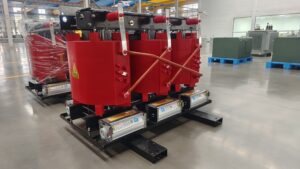

SC(B)H15 Amorphous Dry-type Transformer

Rated capacity:100~1600kVA

Global information:

Product ID: 3.12.33.drp

EAN:–

Catalog Descripton:

Dry-type-transformer/Amorphous Dry-type Transformer/SC(B)H15

Description:

The amorphous alloy dry-type transformer is currently the most advanced energy-efficient dry-type transformer. With low no-load loss, good resistance to dampness, an resistance to cracking, it is oil-free, maintenance-free, flame-retardant, and capable of self-extinguishing. It can be used as a replacement for any common dry-type transformer in any place, including high－rise buildings, business centers, subways, airports, stations, industrial and mining enterprises and power plants. It is particularly suitable for places with high requirements for protection against combustion, explosion and fire.

Description

Technical
Transformer Capacity(kVA):	100	160	200	250	315	400	500	630	800	1000	1250	1600
Primary Voltage(kV):	6, 6.3, 6.6, 10, 10.5, 11, 22, 33, 35,37, 38.5
Secondary Voltage(kV):	0.4, 0.48, 0.55, 0.63, 0.69, 0.8, 1.14
High-voltage Tapping Range(%):	±2×2.5%; ±3×2.5%;
Connection Symbol:	Dyn11, Yyn0,
No-load Loss(kW):	0.13	0.17	0.2	0.23	0.28	0.31	0.36	0.42	0.48	0.55	0.65	0.76
Load Loss(kW75°C):	1.57	2.13	2.53	2.76	3.47	3.99	4.88	5.88	6.96	8.13	9.69	11.73
Short-circuit Impedance(%):	4.0									6.0


Transformer Type:	Amorphous Alloy Dry-type Transformer
Transformer Capacity(kVA):	100-1600
Primary Voltage(V):	6000~38500
Secondary Voltage(V):	400~1140
Frequency (Hz):	50~60
Winding Material:	Aluminum
Anti-corrosionGrade:	C5+

Product functions
Security,flame retardant fire prevention,no pollution,can directly mounted in load center. Moistureproof performance is good,can be in 100% humidity,after the normal operation of the action can be input into operation gets. Equipped with perfect temperature protection control system for transformer,provide a reliable guarantee safe operation. Maintenance free,easy installation,integrated operation cost low. Low loss,local put power,low noise is small,cooling ability,forced air cooling conditions can be rated load operation 150%; High reliability,according to the product to have already been put into operation,the operation reliability of products has reached the international advanced level.
