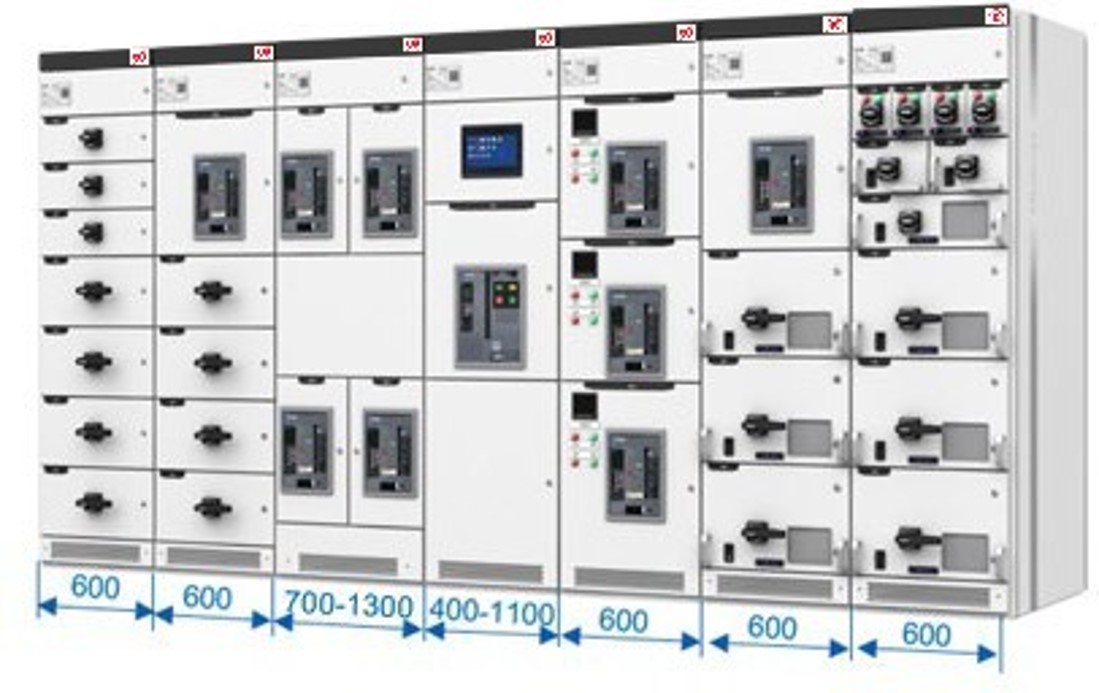

MNS Low Voltage Switchgear

The MNS low-voltage switchgear is a modular and assembly-type low-voltage power distribution equipment. It is suitable for power systems with an AC frequency of 50Hz (or 60Hz) and a rated working voltage of 400V to 660V. Its main functions include power distribution, motor control, and reactive power compensation. It is widely used in power plants, substations, industrial and mining enterprises, high-rise buildings, and municipal construction.

Description

Rated voltage	400V，690V,800V
Rated insulation voltage	1000V
Rated impulse withstand voltage	12kV
Overvoltage category	IV
Pollution level	III
Rated frequency	50/60
Horizontal busbar:Rated current(A)	up to 7500
Horizontal busbar:Rated short-time withstand current(Icw)(kA)	50/80/100
Horizontal busbar:Rated peak withstand current(Ipk)(kA)	105/176/220
Vertical busbar:Rated current(A)	2000
Vertical busbar:Rated short-time withstand current(Icw)(kA)	30/50/80
Vertical busbar:Rated peak withstand current(Ipk)(kA)	63/105/176
Internal arc human protection(IEC 61641)	100kA @400V 0.5s，65kA@690V 0.5s
Grounding system	TT-IT-TNS-TNC
Drawer installation density	36
Maximum incoming and outgoing circuit breakers(A)	up to 6300
Maximum motor capacity(kW)	250
Maximum feeder current of the drawer(A)	540

Features & Advantages

Modular structure design, easily achieving the integration of ACB with drawer cabinets.
Mixed installation of fixed partition cabinets to improve the cabinet’s installation density
Cabinet design is compact, with the minimum width of the 1600A XP cabinet being only 400mm, and the 3200A XP cabinet requiring only 600mm in width.
With three sets of busbar systems, it can adapt to various complex distribution system requirements.
Drawer interchangeability design allows for easy switching of faulty drawers, minimizing the impact on system operation to the greatest extent.
A single-sided drawer cabinet can accommodate a maximum of 36 distribution circuits.
